HIK VISION P10 LED DISPLAY UNIT

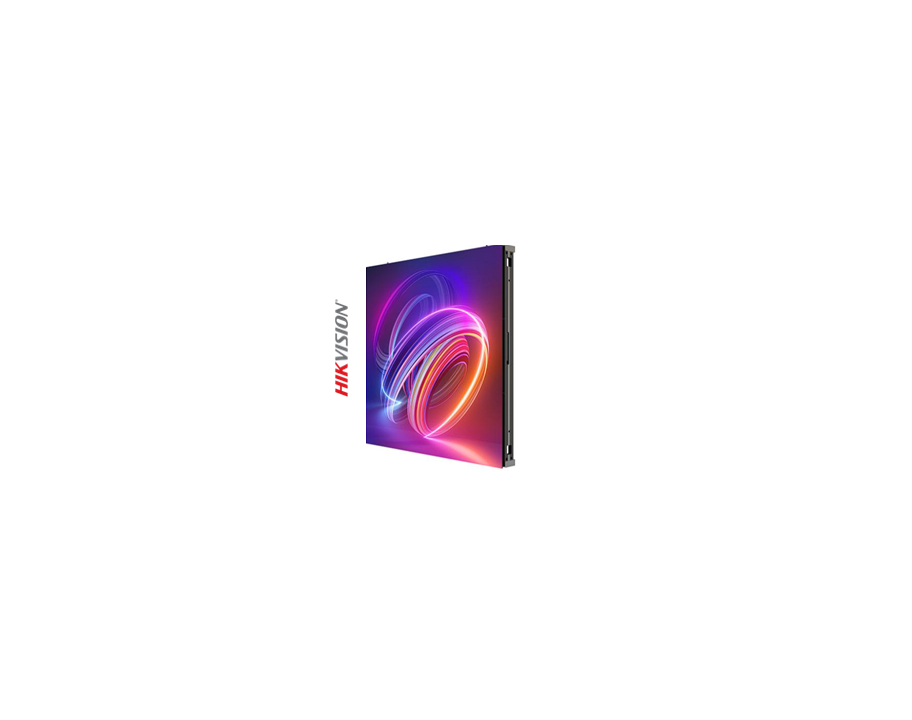

P10 Outdoor LED Display Unit

• Adopt energy-saving scheme, RGB LED IC power supply accurate distribution, energy consumption reduced by 40%+
• Well-designed heat dissipation scheme to cope with hot weather without air conditioner
• Use aviation plug to transmit power and signal between the cabinet, with excellent sun protection and corrosion resistance
• The aluminum cabinet features high flatness of splicing and weighs only 24 kg.
• Meet CE/CB and other international certification standards, stable and reliable quality

• Cabinet
• Modules Component3 × 2
• Resolution96 × 96

• Module
• Pixel ConfigurationSMD Triad LED
• Pixel Pitch CategoryP10
• Pixel Pitch10 mm
• Lamp Bead Dimensions2727
• Dimensions (W × H × D)960 mm × 960 mm × 100 mm (37.795'' × 37.795'' × 3.973'')
• Area0.9216 m²
• 27.6 Kg
• Pixel Density10000 dots/m²
• Maintenance MethodFront/Rear maintenance
• Waterproof LevelIP66
• Component MaterialAluminum Profile

• Display
• White Balance Brightness

  9000 nit (Factory preset brightness)

  10000 nit (Peak)

• Color Temperature9300K adjustable
• Viewing AngleHorizontal 160°, vertical 130°
• Contrast Ratio≥ 8000:1
• Color Uniformity≤ ± 0.003Cx，Cy
• Brightness Uniformity≥ 97％

• Processing Performance
• Driving MethodConstant current driving
• Frame Frequency50/60 Hz
• Refresh RateUp to 3840 Hz
• Grey Level14~16 bit adjustable

• Key Material
• Lamp Encapsulation2727(gold wire)
• Control SystemHikvision

• Power
• Power Supply110~220 VAC ± 15%
• Max. Consumption≤488 W/m² （9000nits）
• Average Consumption≤163 W/m² （9000nits）

• Working Environment
• Working Temperature-40 ℃ to 60 ℃ (-40 ℉ to 140 ℉)
• Working Humidity10%~95%RH (No condensation)
• Storage Humidity10%~95%RH (No condensation)
• Storage Temperature-40 ℃ to 70 ℃ (-40 ℉ to 158 ℉)

• General
• Gross Weight32.35 kg /1 in 1
• Package Dimension (W × H × D)1140 (W) mm × 244 (H) mm × 1068 (D) mm
• LifespanLamp 100,000 hours
