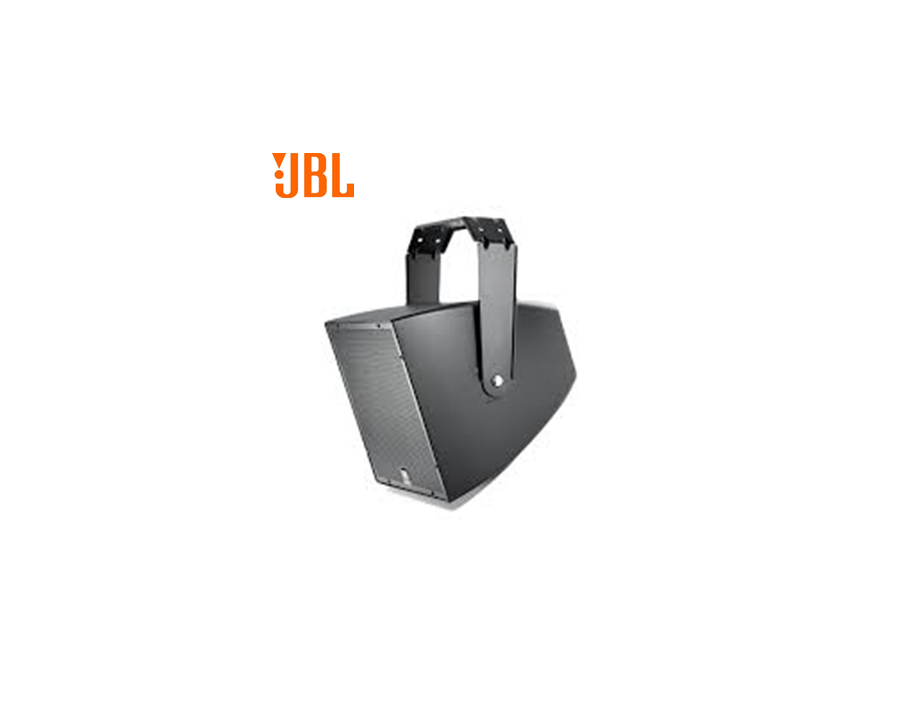

JBL AWC129 All Weather Compact 12" 2-Way Coaxial Loudspeaker

Frequency Range (-10 dB): 55 Hz – 20 kHz

Frequency Response (±3 dB): 80 Hz – 20 kHz

Coverage Pattern: 90° x 90°

Directivity Factor (Q): 10.1 (1–16 kHz)

Directivity Index (DI): 9.5 dB

Power Rating: 400W (2 hrs) / 250W (100 hrs IEC), Peak: 1600W / 1000W

Sensitivity (1W/1m): 96 dB

Maximum SPL (1m): 122 dB continuous, 128 dB peak / 119 dB via 200W tap

Nominal Impedance: 8 ohms

Transformer Taps:

• 70V: 200W / 100W / 50W / 25W

• 100V: 200W / 100W / 50W

LF Driver: 300 mm (12") Kevlar cone, 75 mm (3") voice coil

HF Driver: 25 mm (1") polymer diaphragm compression driver

HF Protection: SonicGuard™

Crossover Network: 1.5 kHz (3rd order HP, 2nd order LP)

Enclosure: ABS with glass fiber, heavily braced

Grille: 3-layer zinc-rich powder-coated steel with foam & mesh backing

Input Connectors: Barrier strip terminals with gland nut (12 AWG max)

Environmental Rating: IP56, MIL Spec 810, ASTM G85 compliant

Dimensions (H × W × D): 402 × 402 × 445 mm

• Depth with gland nut: 470 mm

• With bracket: 542 mm

Net Weight: 15.9 kg (35 lbs), 18.9 kg (41.5 lbs with bracket)
