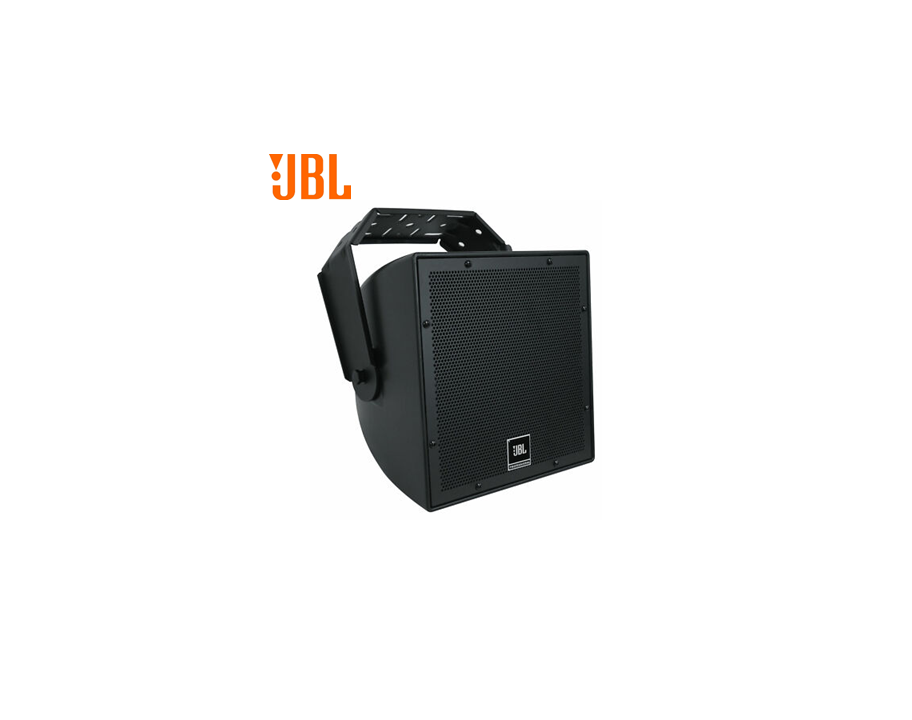

JBL AWC82 All Weather Compact 8" 2-Way Coaxial Loudspeaker

Frequency Range (-10 dB): 80 Hz – 20 kHz

Frequency Response (±3 dB): 100 Hz – 20 kHz

Coverage Pattern: 120° x 120°

Directivity Factor (Q): 8.1 (1–16 kHz)

Directivity Index (DI): 8.4 dB

System Power Rating: 250W (2 hrs), 200W (100 hrs IEC)

Sensitivity (1W/1m): 94 dB

Maximum SPL (1m): 118 dB continuous, 124 dB peak / 117 dB (200W tap)

Nominal Impedance: 8 ohms

Transformer Taps:

• 70V: 200W / 100W / 50W / 25W

• 100V: 200W / 100W / 50W

LF Driver: 200 mm (8") Kevlar-reinforced cone, 50 mm (2") voice coil

HF Driver: 25 mm (1") patented polymer diaphragm compression driver

HF Protection: SonicGuard™ overload protection

Crossover Network: 1.8 kHz (3rd order HP, 2nd order LP)

Enclosure: ABS with glass fiber, heavily braced

Grille: Zinc-rich, powder-coated steel, 3-layer with foam + mesh backing

Input Connectors: Covered barrier strip (accepts up to 12 AWG wire)

Environmental Rating: IP56, MIL Spec 810, ASTM G85 compliant

Dimensions (H × W × D): 300 × 300 × 305 mm

• With gland nut: 331 mm

• With bracket: 359 mm

Net Weight: 9.8 kg (21.5 lbs), 11.6 kg (25.5 lbs with bracket)
