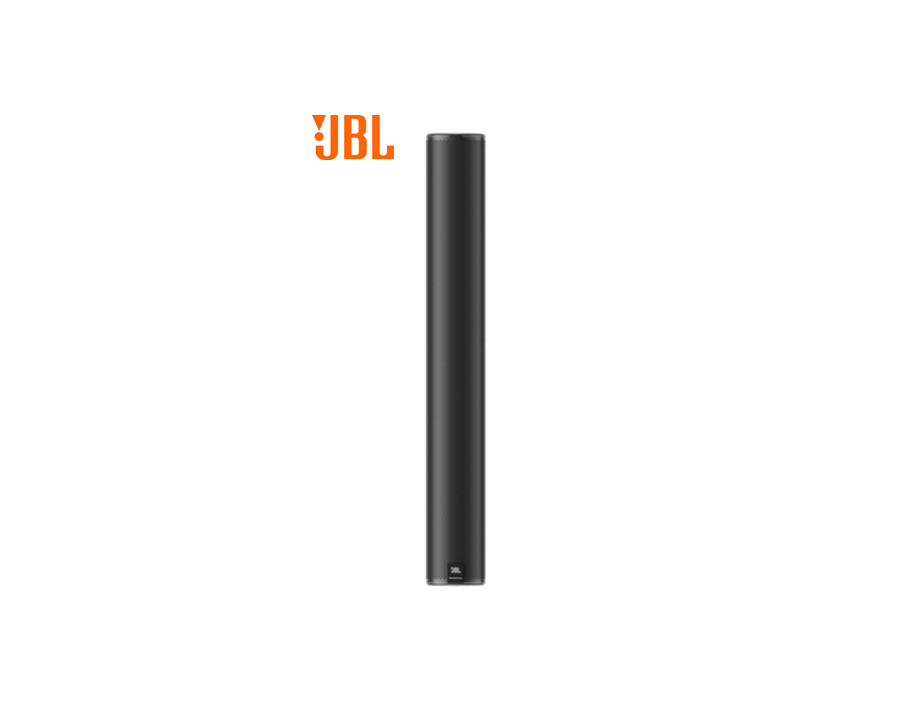

JBL COL600 Slim Column Loudspeaker

Frequency Range (-10 dB): 70 Hz – 20 kHz

Frequency Response (±3 dB): 105 Hz – 20 kHz

Power Rating (8Ω): 80W continuous pink noise, 160W program, 320W peak (2 hrs), 60W (240W peak, 100 hrs)

Sensitivity (1W/1m): 86 dB

Coverage Pattern:

• Horizontal: 160° (1–4 kHz average)

• Vertical: 110° with 10° down-tilt (+45°/–65°)

Directivity (Q): 7.8

Directivity Index (DI): 8.9 dB

Max SPL (1m): 105 dB continuous, 111 dB peak

Nominal Impedance: 8Ω (direct mode)

Minimum Impedance: 7.0Ω @ 275 Hz

Transformer Taps: 20W, 10W, 5W (100V/70V), plus 2.5W at 70V

Drivers: 2 × 125 × 55 mm racetrack LF, 1 × 25 mm (1") HF tweeter

Crossover: 1.8 kHz, 3rd order HP, 2nd order LP

Enclosure: PC + ABS, UL94-V0 rated

Grille: SPCC steel, polyester powder coat, water-resistant backing

Environmental: IP54, UV resistant, IEC60529, MIL Spec 810, ASTM G85

Dimensions (H × W × D): 598 × 102 × 93 mm (23.6 × 4.1 × 3.7 in)

Net Weight: 3.5 kg (7.8 lbs)
