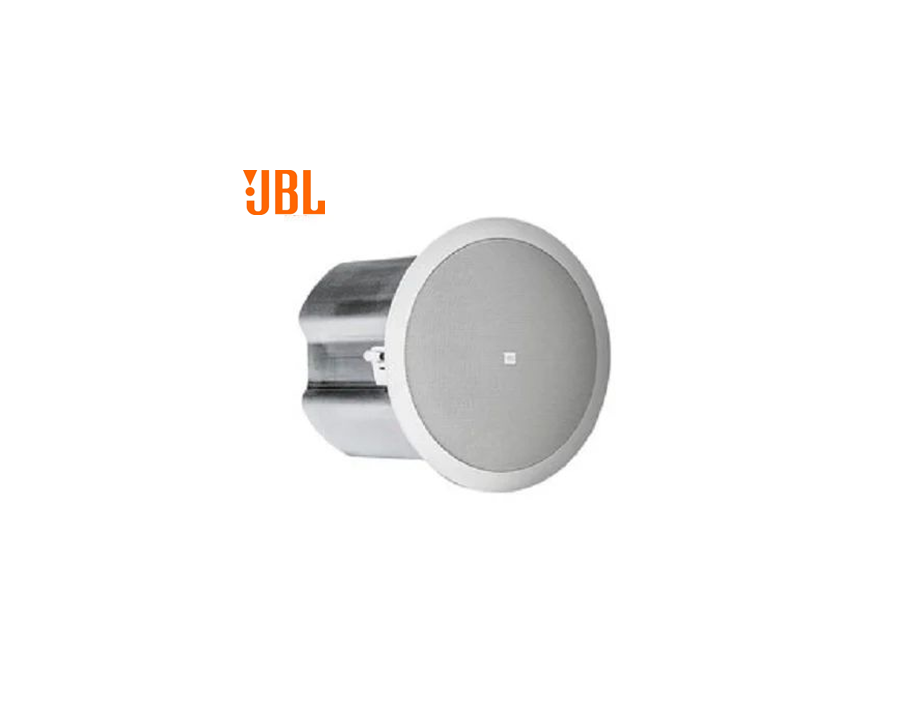

JBL Control 18C/T 8" 2-Way Coaxial Ceiling Loudspeaker

Frequency Range (-10 dB): 58 Hz – 20 kHz

Frequency Response (±3 dB): 80 Hz – 16 kHz

Power Rating: 90W continuous pink noise / 180W program / 360W peak

Sensitivity: 92 dB (1W/1m)

Maximum SPL: 112 dB continuous / 118 dB peak

Coverage Angle: 90° conical

Nominal Impedance: 8Ω (direct mode)

Transformer Taps:

• 70V: 60W, 30W, 15W, 7.5W

• 100V: 60W, 30W, 15W

Drivers:

• LF: 200 mm (8") woofer

• HF: 25 mm (1") soft-dome tweeter

Crossover: 12 dB/oct low-pass & high-pass

Enclosure Material: Steel backcan, ABS baffle (UL94-V0 & UL94-5VB fire-rated)

Cutout Size: Ø282 mm (11.1")

Dimensions: Ø307 mm × 274 mm depth (12.1" × 10.8")

Net Weight: 6.4 kg (14.1 lbs each)
