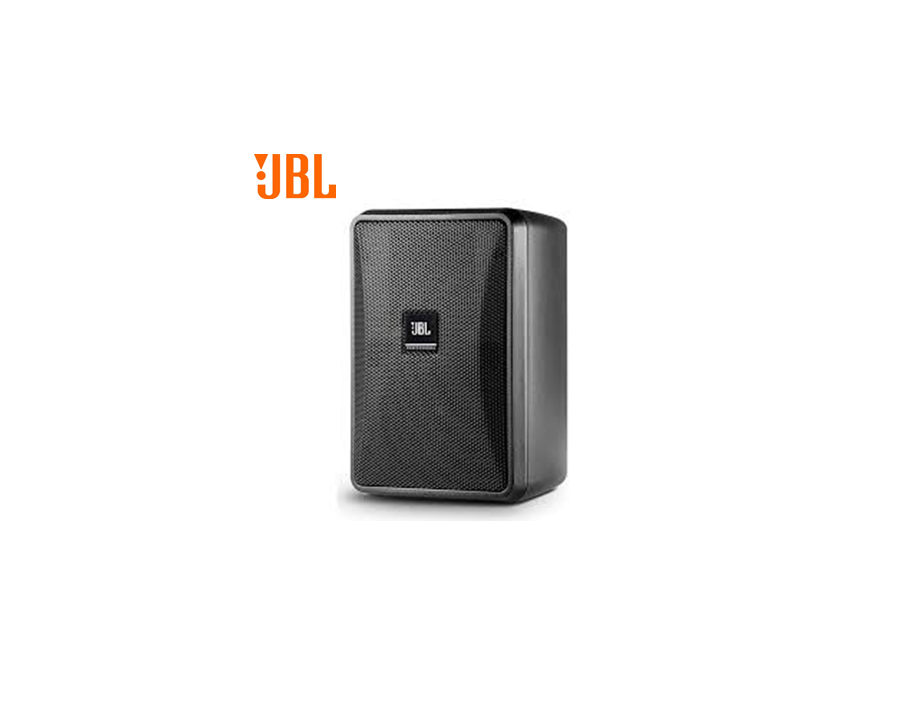

JBL Control 23-1 Ultra-Compact Indoor/Outdoor Background/Foreground Speaker

Frequency Range (-10 dB): 70 Hz – 20 kHz

Frequency Response (±3 dB): 95 Hz – 19 kHz

Power Rating:

• 50W continuous pink noise (2 hrs)

• 100W program power (2 hrs)

• 40W (160W peak) pink noise (100 hrs)

Maximum SPL (1m): 103 dB continuous / 109 dB peak

Sensitivity: 86 dB (1W/1m, avg 100 Hz – 10 kHz)

Coverage Pattern: 100°H × 100°V

Nominal Impedance: 8Ω (THRU setting)

Transformer Taps:

• 70V: 15W, 7.5W, 3.7W, 1.8W

• 100V: 15W, 7.5W, 3.7W

Crossover Type: 2nd order low-pass, 2nd order high-pass

Drivers:

• LF: 76 mm (3.0") woven fiberglass woofer

• HF: 13 mm (0.5") PEI diaphragm tweeter with ferro-fluid cooling

Enclosure: High Impact Polystyrene (HIPS), UV-resistant coating (white version)

Grille: Zinc-plated steel with TGIC polyester powder coating (optional WeatherMax™ grille)

Mounting: InvisiBall™ wall-mount system included; U-bracket and ceiling adapter optional

Outdoor Capability: IP44 (standard), IP55 with optional WeatherMax™ grille & panel cover

Dimensions (H × W × D): 200 × 141 × 111 mm (7.9 × 5.6 × 4.4 in)

Net Weight (each): 1.8 kg (4.0 lbs)
