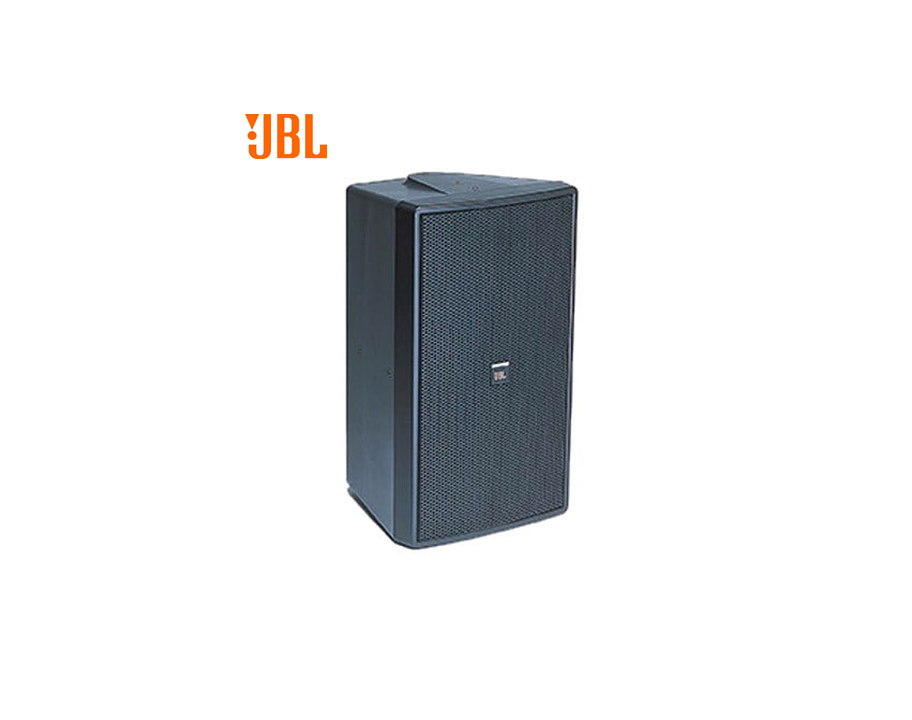

JBL Control 29AV-1 Premium Indoor/Outdoor Monitor Speaker

Frequency Range (-10 dB): 37 Hz – 18 kHz

Frequency Response (±3 dB): 45 Hz – 18 kHz

Power Capacity: 150 W continuous pink noise / 300 W program power

Maximum SPL (1m): 120 dB peak / 114 dB continuous

Nominal Sensitivity: 90 dB (2.83V/1m)

Coverage Angle: 110°H x 85°V (rotatable horn)

Crossover Frequency: 2.5 kHz (3rd order HP / 2nd order LP)

Impedance: 8 ohms nominal (min 6.3 ohms @ 230 Hz)

Transformer Taps:

• 70V: 110 W, 55 W, 28 W, 14 W

• 100V: 110 W, 55 W, 28 W

• Thru position: 8Ω direct mode

Drivers:

• LF: 200 mm (8 in) Kevlar cone woofer with butyl rubber surround, 50 mm (2 in) voice coil

• HF: 25 mm (1 in) titanium diaphragm compression driver

Enclosure: High-impact polystyrene, weather-resistant

Grille: Thermoset composite-coated steel with WeatherMax™ foam

Outdoor Rating: IEC 529 IP-X4, exceeds Mil Spec 810 (humidity, salt spray, UV, temperature)

Input Connectors: Screw-down terminal strip, accepts up to 12 AWG wire

Dimensions (H x W x D): 520 × 306 × 277 mm (20.5 × 12.0 × 10.9 in)

Net Weight: 12.2 kg (26.8 lb)
