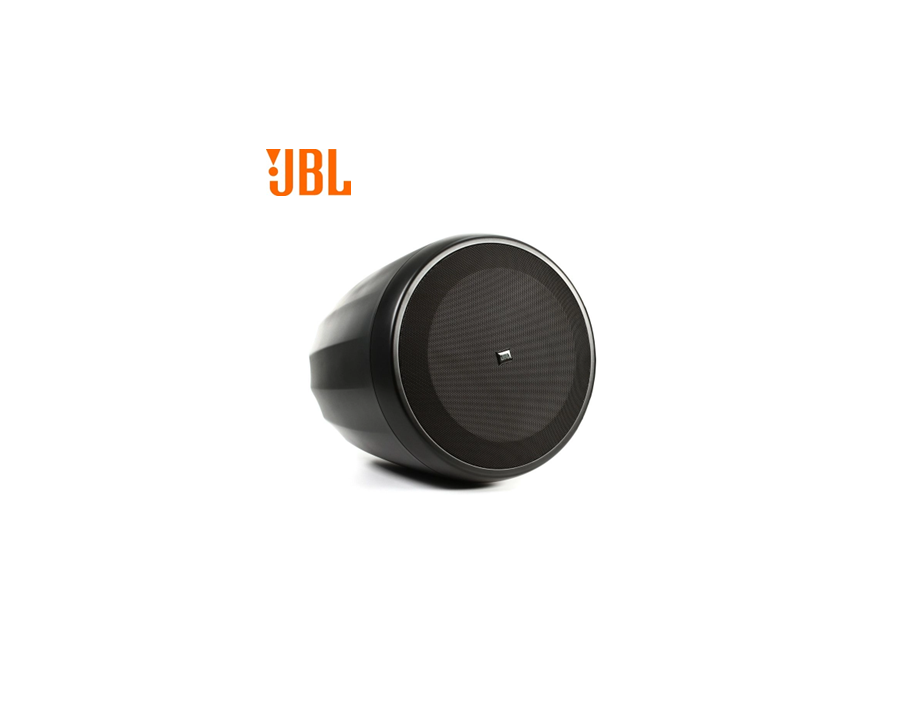

JBL Control67P/T Extended Range Full Range Pendant Speaker

Frequency Range (-10 dB): 58 Hz – 18 kHz

Frequency Response (±3 dB): 78 Hz – 16 kHz

Power Rating: 75W Continuous, 150W Program (300W peaks)

Sensitivity (1W/1m): 90 dB

Coverage Angle: 120° conical

Directivity Factor (Q): 5.7

Directivity Index (DI): 7.5 dB

Maximum SPL (1m): 109 dB continuous, 115 dB peak

Nominal Impedance: 8 ohms

Transformer Taps:

• 70V: 60W / 30W / 15W / 7.5W

• 100V: 60W / 30W / 15W

LF Driver: 165 mm (6.5") polypropylene-coated paper, butyl rubber surround

HF Driver: 25 mm (1") textile soft-dome, neodymium magnet

Enclosure: High-impact polystyrene, paintable

Grille: Zinc-plated steel with powder-coat finish

Weather Rating: IP44, MIL Spec 810 (humidity, salt spray, temperature, UV)

Input Connectors: Dual 2-pin removable Euro-block, loop-thru supported

Suspension System: Dual 4.5 m steel wire cables with Gripple® fasteners

Dimensions (H × W): Ø312 mm × 330 mm (cabinet) / 350 mm (with bracket)

Net Weight: 5.2 kg (11.5 lbs)
